Chuanghe - din 7504k carbon steel self-drilling hexagon head screw Self drilling screw
Our products and solutions are all backed by our advanced manufacturing capabilities and leading technologies. So far, we have been able to manufacture the din 7504k carbon steel self-drilling hexagon head screw skillfully. Its application ranges include Screws.
5.0
design customization
Please fill out the form below to request a quote or to request more information about us. Please be sure to upload customized requirement documents or pictures, and we will get back to you as soon as possible with a response. we're ready to start working on your new project, contact us now to get started.
Please fill out the form below to request a quote or to request more information about us. please be as detailed as possible in your message, and we will get back to you as soon as possible with a response. we're ready to start working on your new project, contact us now to get started.
Relying on professional technicians,Chuanghe Fastener Co.,Ltd has rich experience in researching and developing products, one of which is our din 7504k carbon steel self-drilling hexagon head screw. It is developed based on the latest industry trend and customers' needs. It has been proved that techniques can efficiently improve work efficiency and ensure product performance.It has extensive uses in the application field(s) of Screws. Chuanghe Fastener Co.,Ltd has always insisted on winning by "quality", and has won wide recognition and praise from many companies with high-quality services.
| Finish: | Black, ZINC, Plain, Black Oxide, ZINC PLATED, Zinc-Flake Coated, galvanized | Material: | Stainless Steel, Steel, stainless steel, carbon steel,brass |
| Measurement system: | Metric | Head Style: | Pan, Flat, Round, HEX |
| Place of Origin: | Guangdong, China | Brand Name: | chuanghe |
| Model Number: | self drilling screw | Standard: | GB |
| size: | M2-M20,65mm,m8 300mm,5/16, | Surface treatment: | Galvanization,Nickel-plated,Black oxide,Dacromet |
| Package: | Plastic bag /small box +outer carton +pallets | Advantag: | high quality,waterproof,custom |
| Product name: | roofing screw | Application: | building,roof,solar mounting,frame screws |
| Head type: | hex head | Keyword: | self drilling screw taiwan |
| Type: | self drilling tapping screw |
Product Description
Product Name | din 7504k carbon steel self-drilling hexagon head screw |
Size | M2-M24,or non-standard as request&design |
Material | Stainless Steel,Alloy steel,Carbon Steel,Brass,Aluminum and So on |
Grade | 4.8,8.8,10.9,12.9.etc |
Standard | GB, DIN, ISO, ANSI/ASTM, BS, BSW, JIS etc |
Non-standards | OEM is available, according to drawing or samples |
Finish | Plain, black, zinc plated/according to your requirement |
Certification | ISO9001,IATF16949, |
Package | according to customers requirement |

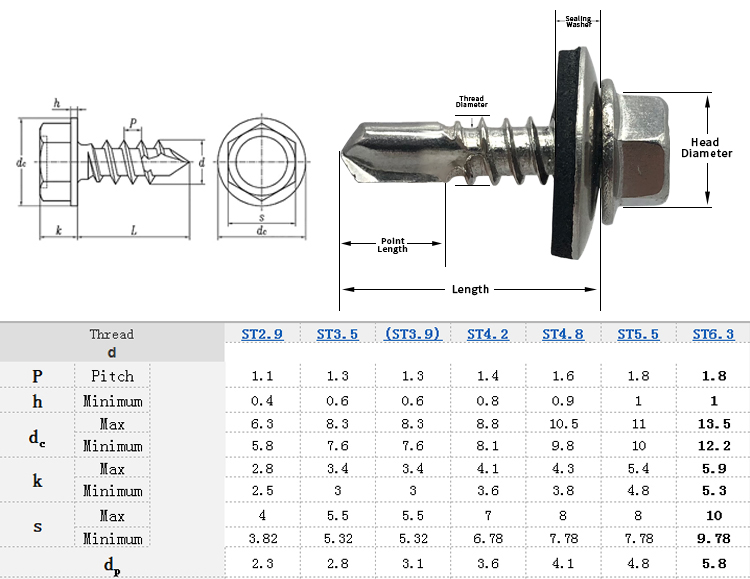

How are self drilling screws measured?
They are measured from the top of the head to the tip. Hex and hex washer head screws and bolts, although flat on the top and the bottom, are measured from the bottom of the head. From that point to the tip is the length of the screw. Self drilling screws are measured all the way to the end of the drill point tip.
Do you need a pilot hole for self drilling screws?
While self-tapping screws will tap a hole into a soft material, self-drilling screws are capable of drilling a hole into anything from metal to wood. This key difference is self-drilling screws have a tip like a drill bit, so they do not need a pilot hole.
What is the difference between self drilling and self tapping screws?
Self-drilling screws eliminate the need for a pilot hole, but can tap as well. Self-tapping screws tap their own threads, but cannot drill through metal and require a pilot hole. These screws are not interchangeable, and mixing up the two can cause many headaches or possible failures in the field.
What are self drilling screws used for?
Self drilling screws have a point that acts as a drill bit and sharp cutting threads that tap the hole during installation. Self drilling screws are a commonly used variety of screw for quick drilling into both metal and wood. A self drilling screw can typically be identified by its point and flute (notch) tip.
Why Choose Us??s??
Excellent solution | ||||||||
2007 Chuanghe Fastener Co., Ltd was founded ,specializing in CNC parts production, to provide the most valuable solution to customers. | ||||||||
Competitive price | ||||||||
Under the precondition of quality assurance,we provide the price more competitive than the average level in market. | ||||||||
One stop shopping | ||||||||
We are manufacturer and also wholesale,Non-standard/standard/OEM/ODM/customized service provided. | ||||||||
Integrity | ||||||||
Experienced R&D department and advanced testing equipment to make sure our products meet customer’s requirement,expect to set up long term cooperation with every customer. | ||||||||
Production process
Certificate
Company Introduction
FAQ
Q1: Are you trading company or manufacturer ?
A1: We are factory.
Q2: Can I visit your factory?
A2: Yes! Warmly welcome to visit our factory. It would be Great if you can inform us in advance.
Q3:The quality of your products?
A3:The company has advanced production and testing equipment .Every products will be 100% inspected by our qc department before shipment
Q4:How about your price?
A4:High quality products with reasonable price. Please give me a inquire, I will quoted you a price for you refer at once.
Q5:Could you provide free samples?
A5:We can provide free samples for standard fastener, But the clients will pay the Express charges.
Q6: What’s your Delivery Time?
A:Standard parts: 7-15days,Non-standard parts: 15-25days.We will make the delivery as soon as possible with the guarantee quality.
Q7: How should I order and make payment?
A7:By T/T, for samples 100% with the order; for production, 30% paid for deposit by T/T before production arrangement, the balance to be paid before shipment.
A1: We are factory.
Q2: Can I visit your factory?
A2: Yes! Warmly welcome to visit our factory. It would be Great if you can inform us in advance.
Q3:The quality of your products?
A3:The company has advanced production and testing equipment .Every products will be 100% inspected by our qc department before shipment
Q4:How about your price?
A4:High quality products with reasonable price. Please give me a inquire, I will quoted you a price for you refer at once.
Q5:Could you provide free samples?
A5:We can provide free samples for standard fastener, But the clients will pay the Express charges.
Q6: What’s your Delivery Time?
A:Standard parts: 7-15days,Non-standard parts: 15-25days.We will make the delivery as soon as possible with the guarantee quality.
Q7: How should I order and make payment?
A7:By T/T, for samples 100% with the order; for production, 30% paid for deposit by T/T before production arrangement, the balance to be paid before shipment.
{{item.score}} Stars
{{item.pre}}%
{{item.nickname ? (item.nickname.slice(0, 2) + '*****') : item.source === 1 ? 'mall buyer' : '--'}}
{{item.comment_time}}
Review in the {{item.country}}
{{itemAttr.params_key}}: {{itemAttr.params_value}}
Get in Touch with Us
Chuanghe Fastener Co., Ltd（CHE parts）is a professional metal parts manufacturer and manufacturing enterprise, Specialize in manufacturing precision automotive fastener wholesale over 15 years. If you have a project then please get in touch and we can discuss your requirements and needs. View more cases we have accomplished to learn more details of our services
Related Products
no data
Our defect rate standard is 0 PPM.
Our production range includes CNC processing center, automatic lathing, automatic milling, wire cutting, powder metallurgy processing and assembly of metal parts with plastic parts.
